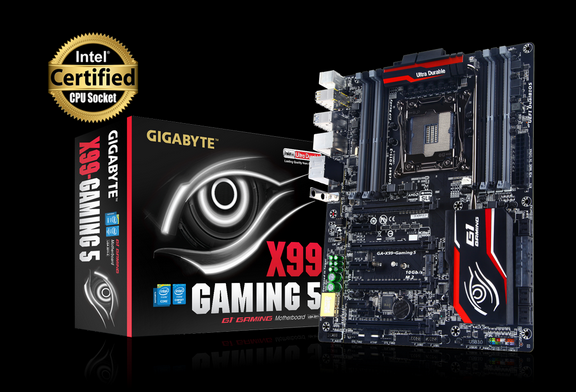

技嘉GA-X99-Gaming 5支持新一代Intel® Haswell-E處理器，支持8插槽4 通道DDR4內存，殺手E2200專業游戲網卡，獨立左右聲道PCB分層設計。以下文檔是技嘉GA-X99-Gaming 5使用手冊，為繁體版本，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
技嘉GA-X99-Gaming 5使用手冊目錄
清點配件.......................................................................................................................6
選購配件.......................................................................................................................6
GA-X99-Gaming 5主機板配置圖.................................................................................7
GA-X99-Gaming 5主機板功能方塊圖........................................................................8
第一章 硬體安裝.......................................................................................................9
1-1 安裝前的注意須知......................................................................................... 9
1-2 產品規格 ........................................................................................................ 10
1-3 安裝中央處理器及散熱風扇 ..................................................................... 13
1-3-1 安裝中央處理器(CPU).......................................................................................13
1-3-2 安裝散熱風扇.....................................................................................................15
1-4 安裝記憶體模組........................................................................................... 16
1-4-1 四通道記憶體技術.............................................................................................16
1-4-2 安裝記憶體模組.................................................................................................17
1-5 安裝擴充卡.................................................................................................... 18
1-6 建構AMD CrossFire™/NVIDIA® SLI™系統....................................................... 19
1-7 後方裝置插座介紹....................................................................................... 21
1-8 安裝後方I/O裝置鐵片.................................................................................. 22
1-9 更換音效放大器........................................................................................... 23
1-10 插座及跳線介紹........................................................................................... 24
第二章 BIOS 組態設定............................................................................................37
2-1 開機畫面 ........................................................................................................ 38
2-2 BIOS設定程式主畫面................................................................................... 39
2-3 M.I.T. (頻率/電壓控制) .................................................................................. 42
2-4 System Information (系統資訊)...................................................................... 54
2-5 BIOS Features (BIOS功能設定)..................................................................... 55
2-6 Peripherals (整合週邊設定).......................................................................... 58
2-7 Chipset (晶片組設定) .................................................................................... 60
2-8 Power Management (省電功能設定)............................................................ 63
2-9 Save & Exit (儲存設定值並結束設定程式) ............................................... 65
第三章 建構SATA硬碟 ............................................................................................67
3-1 設定SATA控制器模式 .................................................................................. 67
3-2 安裝SATA RAID/AHCI驅動程式及作業系統.............................................. 79
第四章 驅動程式安裝 ............................................................................................83
4-1 Chipset Drivers (晶片組驅動程式) ............................................................... 83
4-2 Application Software (軟體應用程式) ........................................................... 84
4-3 Information (資訊清單)................................................................................... 84
第五章 獨特功能介紹 ............................................................................................85
5-1 BIOS更新方法介紹....................................................................................... 85
5-1-1 如何使用Q-Flash更新BIOS................................................................................85
5-1-2 如何使用@BIOS更新BIOS ................................................................................88
5-1-3 如何執行Q-Flash Plus .........................................................................................89
5-2 APP Center....................................................................................................... 90
5-2-1 EasyTune................................................................................................................91
5-2-2 System Information Viewer.....................................................................................92
5-2-3 EZ Setup.................................................................................................................93
5-2-4 Fast Boot ................................................................................................................96
5-2-5 Smart TimeLock......................................................................................................97
5-2-6 Smart Recovery 2...................................................................................................98
5-2-7 USB Blocker .........................................................................................................100
5-2-8 Ambient LED ........................................................................................................101
5-2-9 V-Tuner.................................................................................................................102
5-2-10 Smart Switch ........................................................................................................103
5-2-11 Cloud Station Server ............................................................................................104
5-2-12 Game Controller ...................................................................................................110
第六章 附錄............................................................................................................ 111
6-1 Qualcomm® Atheros Killer Network Manager ..................................................111
6-2 音效輸入/輸出設定介紹........................................................................... 112
6-2-1 2 / 5.1 聲道介紹.................................................................................................112
6-2-2 Creative軟體套件...............................................................................................112
6-2-3 S/PDIF輸出設定 ................................................................................................116
6-2-4 錄音裝置設定...................................................................................................117
6-2-5 錄音機使用介紹...............................................................................................119
6-3 疑難排解 ...................................................................................................... 120
6-3-1 問題集 ................................................................................................................120
6-3-2 故障排除............................................................................................................121
管理聲明 ................................................................................................................ 124
技嘉產品臺灣地區保固共同條款..................................................................... 125
技嘉科技快速服務中心...................................................................................... 126

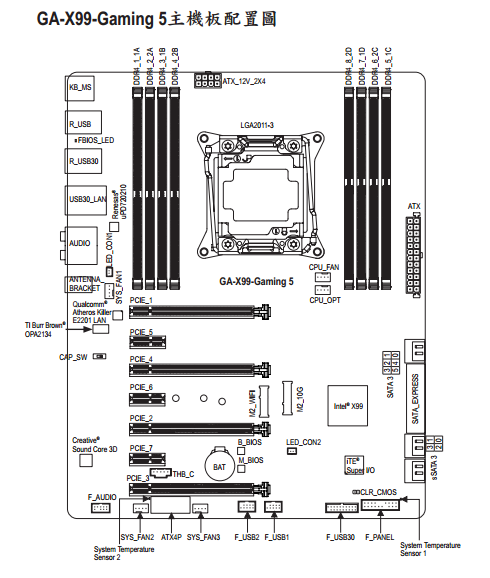

技嘉GA-X99-Gaming 5主板配置圖
技嘉GA-X99-Gaming 5規格參數
中央處理器(CPU)
支持LGA2011-3插槽處理器：Intel® Core™ i7處理器
L3高速緩存取決于CPU
芯片組
Intel® X99 高速芯片組
內存
8個DDR4 DIMM插槽，最高支持到64 GB
*由于Windows 32-bit操作系統的限制，若安裝超過4 GB容量內存時，實際上顯示之內存容量將少于實際安裝的內存容量。
支持4信道內存技術
支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
支持non-ECC內存
支持Extreme Memory Profile (XMP)內存
支持RDIMM 1Rx8內存 (non-ECC模式運作)
音效
內建Creative® Sound Core 3D芯片
支持Sound Blaster Recon3Di
內建TI Burr Brown® OPA2134音效放大器芯片
支持High Definition Audio
支持2/5.1聲道
支持S/PDIF輸出
網絡
內建Qualcomm® Atheros Killer E2201網絡芯片(10/100/1000 Mbit)
